Energy Container Power Solution 50KW 100KW PCS Inverter 500KWH 1000KWH Lithium Battery
Container lithium battery energy storage systems, such as 500kwh, 1mwh, 2mwh, etc., usually store power when the power is surplus, and output the stored power to the grid through the inverter when the power is insufficient. When the power grid is out of power, the lithium battery energy storage system can act as an independent inverter power supply to provide AC power to important loads, thereby ensuring the needs of users. In areas with high electricity costs, it is also possible to build a large energy storage system solely to sell electricity. One stop solution service, free design. 12 years warranty, more than 20 years lifetime UL CE MSDS certificates
51.2V 280AH 300AH 314AH Lithium Ion Battery 15KW 16KW Storage Batteries Price
LiFePO4 Battery 51.2V 280AH 314AH 12 Years Warranty Support Parallel Connection UN38.3, MSDS, CE Certificates
Deye Hybrid Inverter 60KW 80KW Solar Eenergy Storage Inverter Supporting Parallel
DEYE Hybrid Solar Inverter 60KW 80KW (Max. 10 pcs parallel ) SUN-60K-SG02HP3-EU-EM6 SUN-80K-SG02HP3-EU-EM6 Three Phase | 6 MPPT | Hybrid Inverter | HV Battery Supported
Home Storage Battery 30KWH 50KWH 100KWH Lithium Ion Battries with DEYE SOLIS GROWATT Inverters
Greensun Rack Mount Lithium Ion Battery Parallel Connection Support Capacity from 100KWH to 1MWH 10-15 Years warranty. 20 Years Design Life Also offer complete solar systems solution for home and commercial use.
TopCon Solar Panels 700W 710W 720W 730W 750W 800W Bifacial PV Module 730W Price
N-Type Solar Panels Bifacial Type 700W - 730W Monocrystalline High Efficiency 2384*1303*30MM
N Type Solar Panel 440W 445W 450W 455W 460W Full Black Bifacial Solar Module Price
N-Type Solar Panels Full Black Bifacial Type 440W - 460W Monocrystalline High Efficiency 1762*1134*30MM
50KW 60KW 80KW 100KW Hybrid Storage Solar Power System Solution with Lithium Ion Batteries Deye
Energy Storage Solar Systems solution with Lithium Ion Batteries Hybrid Solar Systems 25 Years Warranty 110v/220v/380v/400v/480v EU USA Standard CE TUV IEC UL,,,etc Certificatation

Energy Container Power Solution 50KW 100KW PCS Inverter 500KWH 1000KWH Lithium Battery

Container lithium battery energy storage systems, such as 500kwh, 1mwh, 2mwh, etc., usually store power when the power is surplus, and output the stored power to the grid through the inverter when the power is insufficient.

When the power grid is out of power, the lithium battery energy storage system can act as an independent inverter power supply to provide AC power to important loads, thereby ensuring the needs of users.

In areas with high electricity costs, it is also possible to build a large energy storage system solely to sell electricity.

One stop solution service, free design.

12 years warranty, more than 20 years lifetime

UL CE MSDS certificates

Brand:
GREENSUN OR OEM SERVICE
Product Origin:
China
Shipping Port:
Ningbo, Shanghai, Shenzhen
Voltage :
600V - 1000V
Ampere:
300KWH, 500KWH, 800KWH, 1MWH
Maintenance Type:
Free Maintenance
Cycle Life:
20 years
Material:
lithium ion battery
Certification:
CE, UN38.3, ISO, MSDS, ETL, UL
Payment:
T/T,Credit Card, Paypal, Western Union
Warranty:
12 years

contact now

Product Details

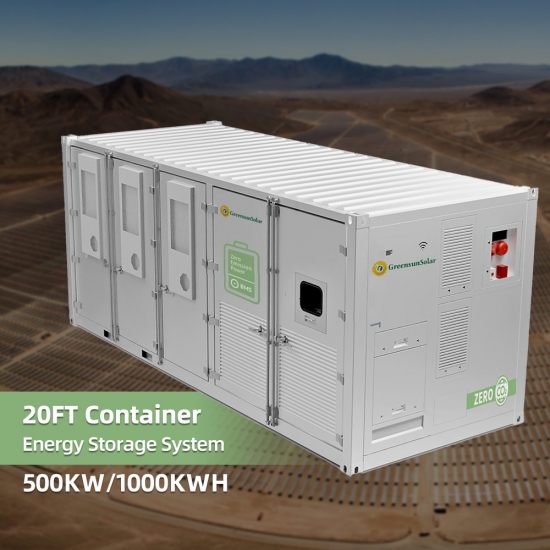

Energy Container Power Solution 50KW 100KW PCS Inverter 500KWH 1000KWH Lithium Battery

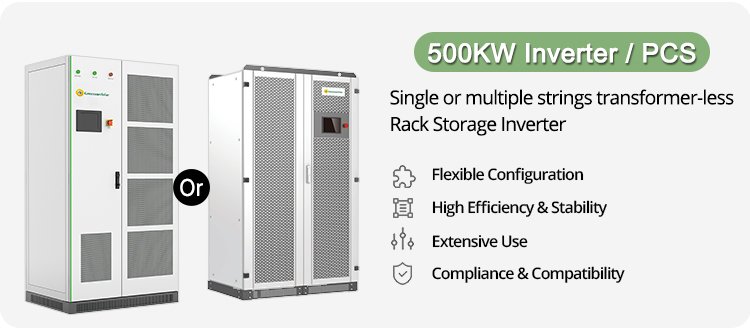

500KW PCS

PCS Inverter

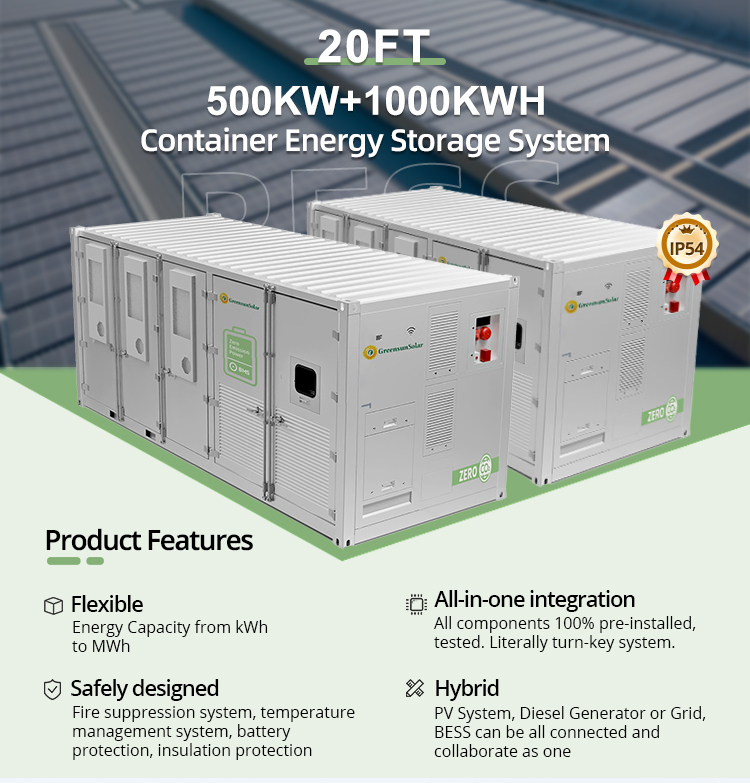

Container Battery Energy Storage System
Model	ESS-100KWH	ESS-200KWH
Parameter-BATTERY (DC)
Rated Voltage (V)	358.4	716.8
Voltage range (V)	313.6-403.2	627.2-806.4
Rated Capacity (Ah)	280Ah / 314Ah
Rated Energy (kWh)	100.3kWh	200.7kWh
Cycle Life	≥6500 Times
AC(on -grid)
Recommend Input Power	50KW	100KW
Rated Voltage	380V/400V
Output	3W+N+PE
Rated frequency	50/60Hz
AC(off -grid)
Rated Power	50Kw	100Kw
Rated Current	43A	144A
Rated Voltage	380V / 400V/ 440V
Size & Installment
Approx Dimension(WDH) mm	168015001700mm	168022701700mm
Approx Weight	1100kg	2300kg
Max. Conversionefficiency	95%
Max.imum Altitude	4000m(derate over 2000m)
Cooling Forced-air	Intelligent fan adjustment
Display Touch Screen	Intelligent fan adjustment
For detailed requirements, please contact us to provide customized solutions

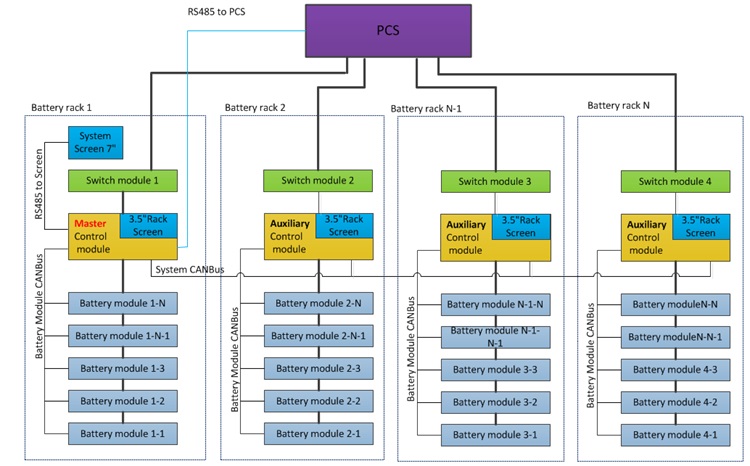

Details of Lithium Battery

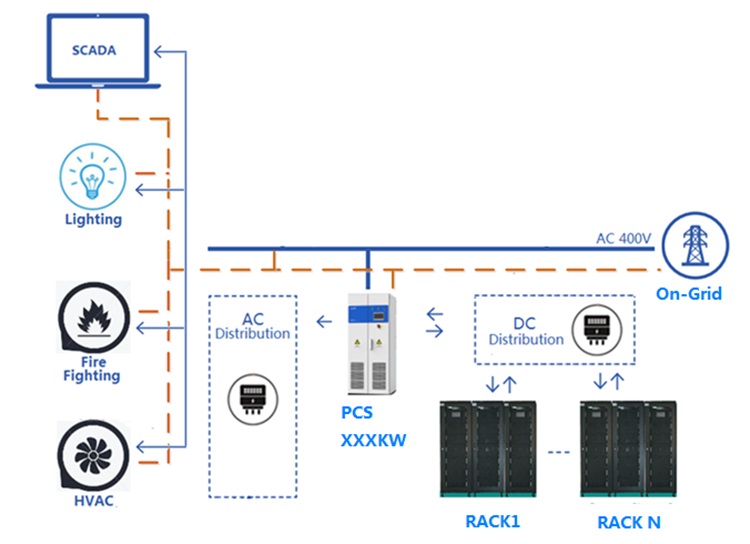

System Function Diagram

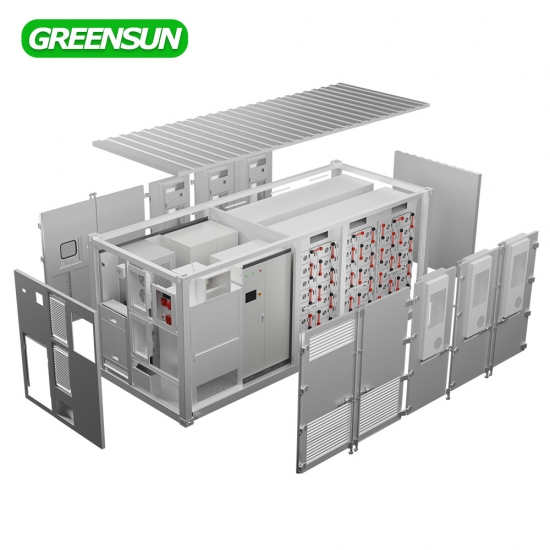

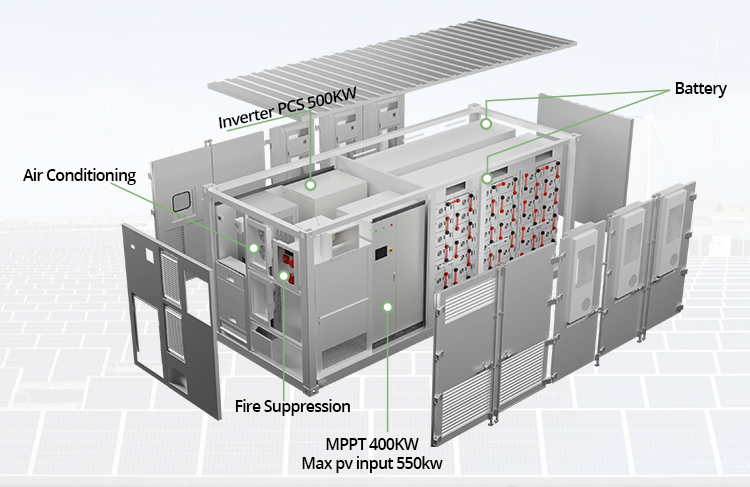

This ESS(Energy Storage System) contains:
● LiFePO4 Battery System
● PCS Inverter
● HVAC(Heating, Ventilation and Air Conditioning) ( 1 Set)
● Fire Fighting, Lighting System ( 1 Set )
● Thunder-proof, AC& DC Distributor, optional parts
● SCADA(Supervisory Control And Data Acquisition) System

All of the above are designed in a 20/40ft Standard Container.

lithium ion battery inverter

40`ft container lithium ion battery

Projects of Lithium Battery

500kwh lithium ion battery

2mwh lithium ion battery

All lithium batteries have BMS inside.

We offer one stop solution with solar panel, storage inverter,lithium battery and battery cabinet.

Fast delivery, free design, 100% new battery cells.

Accept OEM and ODM service.

Pls contact us without hesitate if you are intersted in.

Phone/Whatsapp: +86 186 5699 5254

Mail: peter@greensunpv.com

Web: www.greensunpv.com
