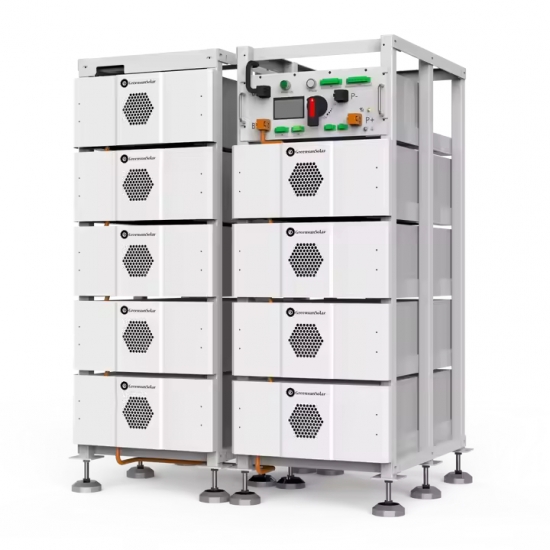

Greensun Rack Mount Lithium Ion Battery
Parallel Connection Support
Capacity from 100KWH to 1MWH
10-15 Years warranty.
20 Years Design Life
Also offer complete solar systems solution for home and commercial use.
Brand:
GREENSUN OR OEM SERVICEItem NO.:
GREENSUN HV BATTEProduct Origin:
CHINAColor:
WHITEShipping Port:
shenzhen, shanghaiSolar Cell:
314Ah Battery CellsType:
HV Lithium BatteryMax Power :
1000KWHMaintenance Type:
FreeCycle Life:
25YearsCertification:
IEC, TUV, ETL, CELead Time:
30 DaysWarranty:
15 YearsGreensun Lithium Batteries 314AH HV Storage Battery 65KWH 100KWH 145KWH 210KWH 225KWH 240KWH 250KWH Price

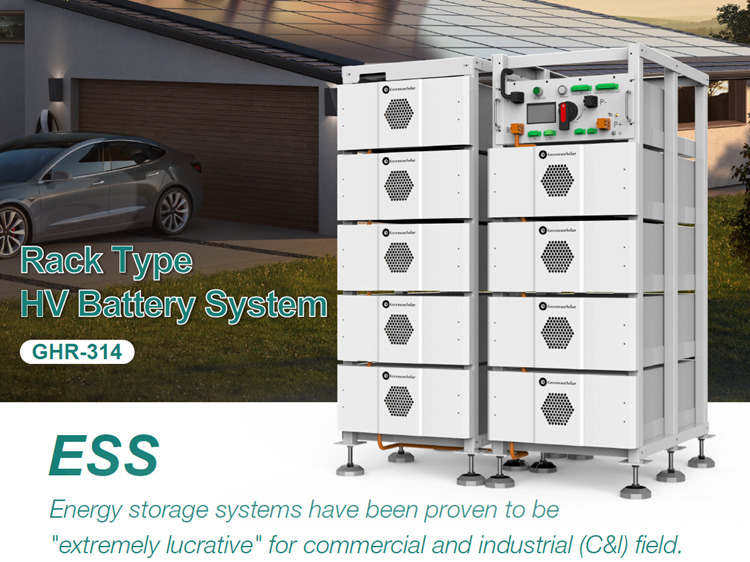

314Ah High Voltage Stacked LiFePO4 Battery
*Compatible with all brands Hybrid Inverters
314Ah Greensun Lithium Ion Battery Specification
Model
51.2V 314Ah Model
Cell Chemistry
LiFePO4
Module Energy (kWh)
16.076
Module Nominal Voltage (V)
51.2
Module Capacity (Ah)
314
Battery Module
GHR-314-E64
GHR-314-E80
GHR-314-E96
GHR-314-E112
GHR-314-E128
GHR-314-E144
Battery Module Qty
4
5
6
7
8
9
Nominal Voltage (V)
204.8
256.0
307.2
358.4
409.6
460.8
Operating Voltage (V)
179V~227V
224V~284V
269V~341V
314V~398V
358V~454V
403V~511V
System Energy (kWh)
64.31
80.39
96.46
112.53
128.61
144.69
Charge/Discharge Current(A)
157A
Thermal Management
Smart fan cooling
LCD Display
SOC/ Voltage/Tem/Time/Fault Code
Working Temperature (°C)
Charge:0~55/Discharge :-20-55
Status Indicator
Wake Up/Power light
Communication Port
CAN/R5485
Cycle Life
25±2℃, 0.5C/0.5C, DOD80%≥6500
Warranty
10 years
Certification
CE/UN38.3/MSDS
Dimension (W*D*H, mm)
582*838*1480
582*838*1736
582*838*1992
582*838*2248
1184*838*1480
1184*838*1480
Weight Approximate (kg)
534kg
655kg
779kg
903kg
1037kg
1151kg
Greensun Battery Production & Package
Greensun Lithium Ion Battery Projects for Reference
All lithium batteries have BMS inside.
Our High Voltage Rack Stack Lithium
Battery Modular can connect in parallel to reach 100KWH to 1MWH, ,,etc. Compared with ordinary sealed lead-acid batteries, our LiFePO4
batteries have more advantages.
1. With the same capacity, the weight is lighter
2. Longer life, generally more than 20 years
3. Faster charging speed and lower self-discharge rate.
4. Built-in BMS, higher security.
Our lithium battery cells come from first-line manufacturers, including CATL, BYD, EVE and other brands.
All batteries are of A+ quality to ensure that the product quality can meet the requirements of customers.
At the same time, our lithium batteries comply with CE, IEC, ISO, UL,
MSDS, UN38.3 and other product certifications to meet the local sales
and use requirements of customers in multiple markets.
At present, our lithium battery products have been exported to more than
100 countries and regions, and we provide quality assurance and
after-sales service for all products.
According to the product status feedback from customers, remote upgrade
control or free replacement of BMS motherboard accessories.
If you have any demand for lithium battery products, please contact us in time.
