Rack Mount 48V 96V 192V 240V 360V Lithium Ion Battery 15KW 20KW 40KW 50KW Lifepo4 Batteries Storage

storage hybrid solar system battery

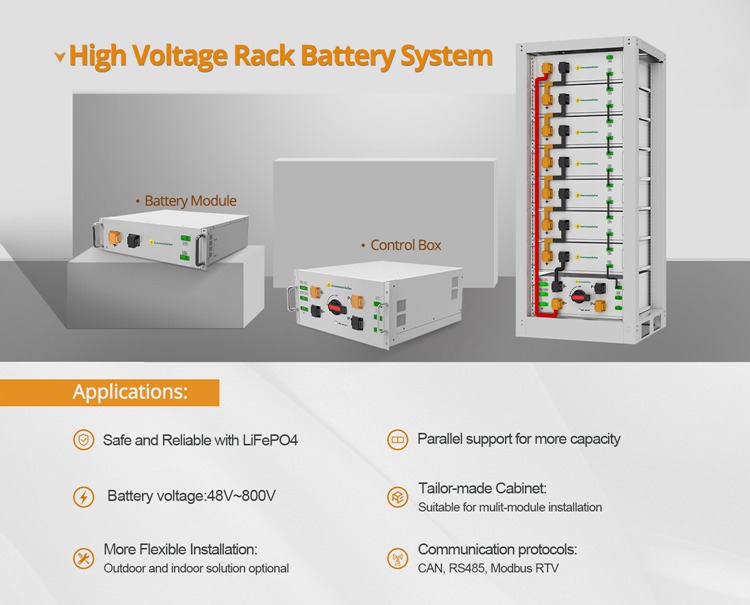

High Voltage Stacked LiFePO4 Battery

*153.6V-512V wide voltage

*16KWH-50KWH wide Capacity

*Easy installation with modular and stacked design

*Remote firmware upgrade

*IEC CE CEC UN38.3 UL Certificates

*Compatible with all brands Hybrid Inverters

Greensun Lithium Ion Battery Specification

MODEL	15KWH	20KWHH	25KWH
Battery Module	51.2V /48V 106AH LiFePO4 Battery
Numbers of Modules	3	4	5
Energy Capacity	16.28KWH	21.7KWH	27.13KWH
Norminal Voltage	153.6V	204.8V	256V
Dimension (W/D/H)*1	600/400/683mm	600/400/832mm	600/400/981mm
Weight	170KG	215KG	260KG
General
Battery Type	Cobalt Free Lithium Iron Phosphate (LFP)
Charge/Discharg Current	50A/100A
IP Protection	IP65
Installation	Rack Mount Support
Operation Temperature	-10~50°C* 3
Warranty	10Years
Communication Port	CAN/RS-485/RS-232
BMS Monitoring Parameters	SOC, System voltage, current, cell voltage,cell temperature, PCBA temperature measurement

MODEL	30KWH	35KWH	40KWH
Battery Module	51.2V /48V 106AH LiFePO4 Battery
Numbers of Modules	6	7	8
Energy Capacity	32.56KWH	37.99KWH	43.41KWH
Norminal Voltage	307.2V	358.4V	409.6V
Dimension (W/D/H)*1	600/400/1130mm	600/400/1279mm	600/400/1428mm
Weight	305KG	350KG	395KG
General
Battery Type	Cobalt Free Lithium Iron Phosphate (LFP)
Charge/Discharg Current	50A/100A
IP Protection	IP65
Installation	Wall-mounted or Floor installation* 2
Operation Temperature	-10~50°C* 3
Warranty	10Years
Communication Port	CAN/RS-485/RS-232
BMS Monitoring Parameters	SOC, System voltage, current, cell voltage,cell temperature, PCBA temperature measurem

Greensun Battery Production & Package

Greensun Lithium Ion Battery Projects for Reference

hybrid solar system

hybrid solar system 100kw

(30KW Hybrid Solar system with 100KWH lithium Battery in USA)

This high voltage lithium battery is a rack mountable battery storage system for residential and light commercial use.
Its rechargeable Lithium Iron Phosphate (LFP) battery has a modular design, and the number can be increased or decreased in subsequent uses according to specific needs.

It can provide safe and reliable energy storage for daily use and backup of household solar energy storage systems.

Suitable for outdoor use, the system is simple to install and is compatible with most energy storage inverters from industry-leading manufacturers including Deye, Sol-Ark, SMA, Schneider, Growatt, Outback, Megarevo and more.

Please contact us if you have any demand.
