48V 96V Integrated design lithium ion battery cabinet, one-stop solution solar energy storage system 20KWH, 40KWH, 60KWH, 80KWH,,,,etc
Half Cells Monocrystalline 144cells 182*182mm cells, 9BB 10BB 540w 550w 560w power solar module
48V Lithium Ion Battery Modular Pack Parallel connection, easy installation One-stop solar power system solution 12 years warranty, 6000cycles, free design
Hybrid solar energy storage systems has mainly four kinds: On grid and off grid solar energy storage system, on grid solar energy storage system, off grid solar enegry storage system and microgrid solar energy storage system

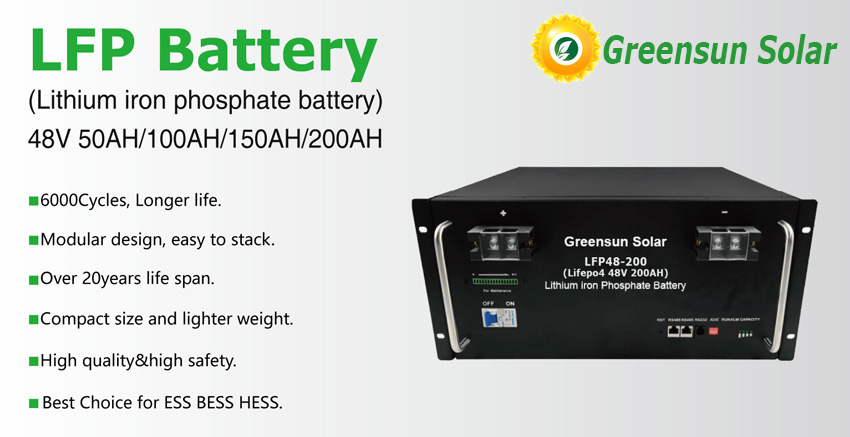

48V 200AH Lifepo4 Battery Pack 10KWH Lithium Ion Battery 51.2V 200AH 10KW Tesla
Brand:
GREENSUN OR OEM SERVICEProduct Origin:
ChinaShipping Port:
Ningbo, Shanghai, ShenzhenSealed Type:
SealedVoltage :
48Ampere:
200ahMaintenance Type:
Free MaintenanceCycle Life:
More than 6000timesMaterial:
3.2v 50ah battery cellCertification:
CE, UN38.3, ULPayment:
T/T,Credit Card, Paypal, Western UnionWarranty:
10 years48V 200AH Lifepo4 Battery Pack 10KWH Lithium Ion Battery 51.2V 200AH 10KW Tesla
Lithium Ion Battery Pack Datasheet
|
Lithiu Battery Model |
48V 50AH |
48V 100AH |
48V 150AH |
48V 200AH |
|
Nominal Voltage |
48V |
48V |
48V |
48V |
|
Nominal Capacity |
2400WH |
4800WH |
7200WH |
9600WH |
|
Usable Capacity (80% DOD) |
1920WH |
3840WH |
5760WH |
7680WH |
|
Dimension (mm) |
482*400*180 |
482*232*568 |
||
|
Weight (Kg) |
27Kg |
45Kg |
58Kg |
75Kg |
|
Discharge Voltage |
37.5 ~ 54.7V |
|||
|
Charge Voltage |
48 ~ 54.7 V |
|||
|
Charg/ Discharge Current |
Max Current 100A |
|||
|
Communication |
CAN/ RS-485 |
|||
|
Operating Temperature Range |
- 10℃ ~ 50℃ |
|||
|
Humidity |
15% ~ 85% |
|||
|
Product Warranty |
10 Years |
|||
|
Design Life Time |
20+ Years |
|||
|
Cycle Time |
6000+ Cycles |
|||
|
Certificates |
CE , UN38.3, UL |
|||
|
Compatible Inverter |
SMA, GROWATT, DEYE, GOODWE, SOLA X, SOFAR,,,etc |
|||
Details of Lithium Battery
Projects of Lithium Battery
All lithium batteries have BMS inside.
Our Lithium Battery Modular can connect in parallel to reach 48v 20kwh, 50kwh, 100kwh,,etc.
We offer one stop solution with solar panel, storage inverter,lithium battery and battery cabinet.
Fast delivery, free design, 100% new battery cells.
Accept OEM and ODM service.
Pls contact us without hesitate if you are intersted in.
Phone/Whatsapp: +86 186 5699 5254
Mail: peter@greensunpv.com
Web: www.greensunpv.com
