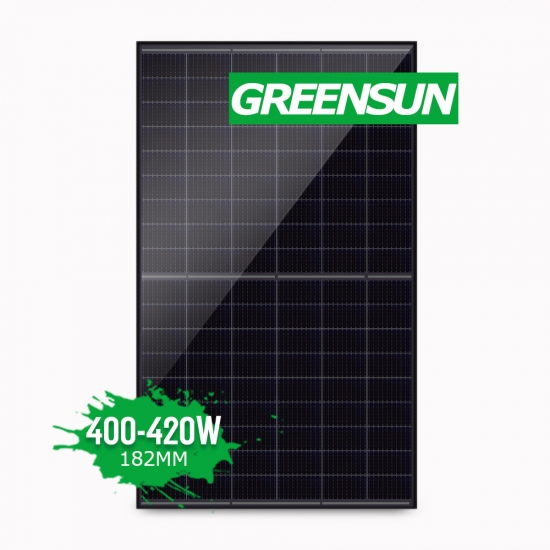

Black Photovoltaic Solar Panel 400W 410W 415W 420W Monocrystalline Solar Module

Half Cells Monocrystalline

182*182mm cells

1134*1726*30mm size


  • Brand:

    GREENSUN OR OEM SERVICE
  • Product Origin:

    China
  • Color:

    Full Black
  • Shipping Port:

    Ningbo Or Shanghai
  • Number Of Cells:

    108cells
  • Solar Cell:

    Mono 182x182mm
  • Power Ranger:

    400w-420w
  • Size:

    1726mm×1134mm×35mm
  • Type:

    Monocrystalline
  • Max Power :

    420W
  • Certification:

    IEC/CE/TUV/CSA/CEC/UL
  • Lead Time:

    7days
  • Payment:

    T/T,Credit Card, Paypal, Western Union
  • Warranty:

    25 years
Product Details

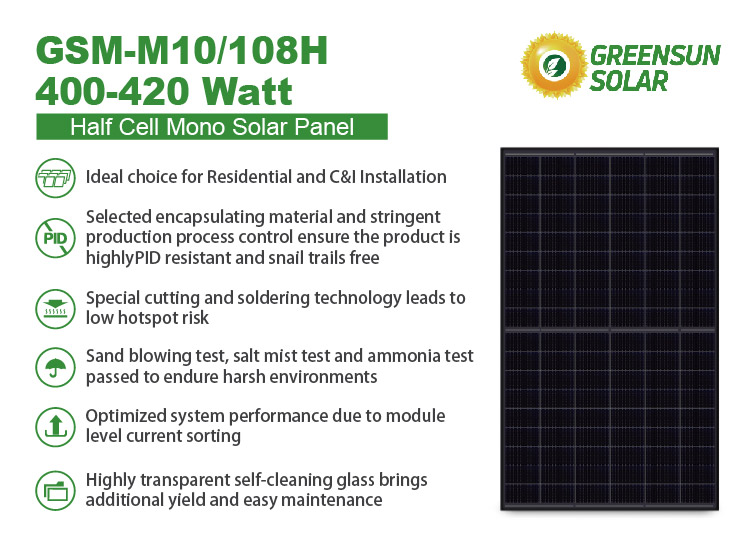

Black Photovoltaic Solar Panel 400W 410W 415W 420W Monocrystalline Solar Module

Specification of Black Half Cut Solar Panel Monocrystalline

black solar panel 410w

black solar panel 420w

PV Module
405W
410W
415W
420W
Rated Maximum Power(Pmax) [W]
405

410

415
420
Open Circuit Voltage(Voc) [V]
37.24
37.45
37.66
37.87
Maximum Power Voltage(Vmp) [V]
31.38
31.59
31.80
32.01
Short Circuit Current(Isc) [A]
13.81
13.88
13.95
14.02
Maximum Power Current(Imp) [A]
12.91
12.98
13.05
13.19
Module Efficiency [%]
20.7
21.0
21.3
21.5
Power Tolerance
0~+5W
Temperature Coefficient of Isc(α_Isc)
+0.048%/℃
Temperature Coefficient of Voc(β_Voc)
-0.270%/℃
Temperature Coefficient of Pmax(γ_Pmp)
-0.350%/℃
STC
Irradiance 800W/m², Ambient temperature 20℃

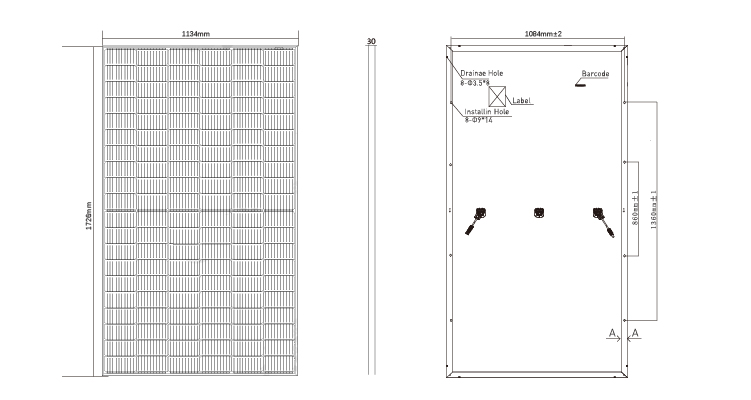

Size
1726*1134*35mm
Weight
22kg


Production of Half Cut Half Cells Solar Panel (182*182mm)

420w photovoltaic solar panel


Package for Half-cut Solar Panel

half cell solar panel package

27 units to 30 units half-cut cells solar panel in one wood pallet

10 pallets solar panels in a 20ft container

23 pallets pv modules in a 40ft HQ container

Customization Package is Feasibility


Half-cut Cells Advantages

(1) The solar cell is divided into two, the main gate current is halved, the current loss of the whole component is reduced to 1/4 of the original, and the output power is about 5-10W higher than that of the same type of whole battery assembly.

(2) The hot spot temperature of the half-chip module assembly is lower than the temperature of the same-type full-piece module
assembly by about 25 ° C, which can effectively reduce the hot spot effect of the component.

(3) Half-cut module components meet the 1500V system voltage design requirements, which can reduce the system-side cost by about 10%;

(4) Effectively reduce the loss of power generation caused by occlusion when there is shadow occlusion and ash accumulation or snow accumulation.

(5) Reduce the first year and the average photoinduced attenuation;

(6) 100% PID Free.


On grid solar system connects to grid, self consumption first,excess power can be sold to the grid.

Grid tie solar system mainly consists of solar panels, grid tie inverter, brackets, etc.


Energy Storage Solar System can connect to grid, self consumption first, excess power can be stored in the battery

Hybrid solar system mainly consists of pv modules, hybrid inverter, mounting system, battery,etc.


Stand alone solar system works alone without city power

Off grid solar system mainly consists of solar panels, off grid inverter, charge controller, solar battery, etc


One stop solution for solar power system, solar water pump system.
