Deep well solar water pump system for sprinkling irrigation
Specification of dc solar water pump system
|
Dc pump model |
pump power
(watt) |
water flow (m3/h) |
water head (m) |
outlet
(inch) |
weight (kg) |
|
3JTS(T)1.0/30-D24/80 |
80w |
1.0 |
30 |
0.75" |
7 |
|
3JTS(T)1.5/80-D24/210 |
210w |
1.5 |
80 |
0.75" |
7.5 |
|
3JTS(T)2.3/80-D48/750 |
750w |
2.3 |
80 |
0.75" |
9 |
|
4JTS3.0/60-D36/500 |
500w |
3 |
60 |
1.0" |
10 |
|
4JTS3.8/95-D72/1000 |
1000w |
3.8 |
95 |
1.0" |
13.5 |
|
4JTS4.2/110-D72/1300 |
1300w |
4.2 |
110 |
1.0" |
14 |
|
3JTSC6.5/80-D72/1000 |
1000w |
6.5 |
80 |
1.25" |
14.5 |
|
3JTSC7.0/140-D192/1800 |
1800w |
7.0 |
140 |
1.25" |
17.5 |
|
3JTSC7.0/180-D216/2200 |
2200w |
7.0 |
180 |
1.25" |
15.5 |
|
4JTSC15/70-D72/1300 |
1300w |
15 |
70 |
2.0" |
14 |
|
4JTSC22/90-D216/3000 |
3000w |
22 |
90 |
2.0" |
14 |
|
4JTSC25/125-D380/5500 |
5500w |
25 |
125 |
2.0" |
16.5 |
|
6JTSC35/45-D216/2200 |
2200w |
35 |
45 |
3.0" |
16 |
|
6JTSC33/101-D380/7500 |
7500w |
33 |
101 |
3.0" |
22.5 |
|
6JTSC68/44-D380/5500 |
5500w |
68 |
44 |
4.0" |
23.5 |
|
6JTSC68/58-D380/7500 |
7500w |
68 |
58 |
4.0" |
25 |

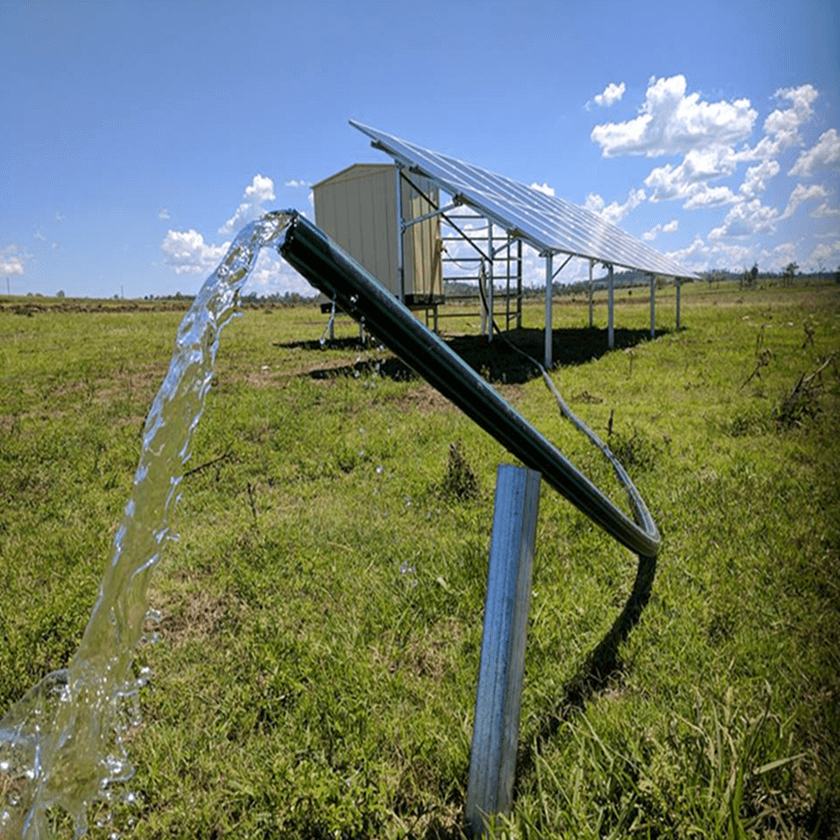

Project pictures of solar water pump system
5hp DC solar water pumping system in Australia .
Water head : 15meter
Water flow : 25M3 water per day
3hp DC solar water pumping system in Saudi Arabia.
Water head : 5meter
Water flow : 10M3 water per day
DC Solar water pumping system including dc water pump ,solar module ,MPPT pump controller ,solar mounting brackets ,dc combiner box and related accessories .
Daytime , solar panel array provide power for the whole solar water pump sytem operating ,the mppt pump controller converts the direct current output of the photovoltaic array into alternating current and drives the water pump, adjust the output voltage and frequency in real time according to the change of sunshine intensity to achieve maximum power point tracking .
Advantages of DC solar water pumping system :
1. Compare with AC water pump system ,dc well water pump system has high effciency ; portable dc pump and mppt controller ；a small quantity of solar panels and mounting brackets ,easy to install .
2. Only need small area to install solar panel array .
3. Safety ,low cost , long life time .
Direct current solar water pump application :
(1) Economic crops and farmland irrigation.
(2) Livestock water and grassland irrigation.
(3) Household water .
One stop solution for solar water pumping system, solar power system.
