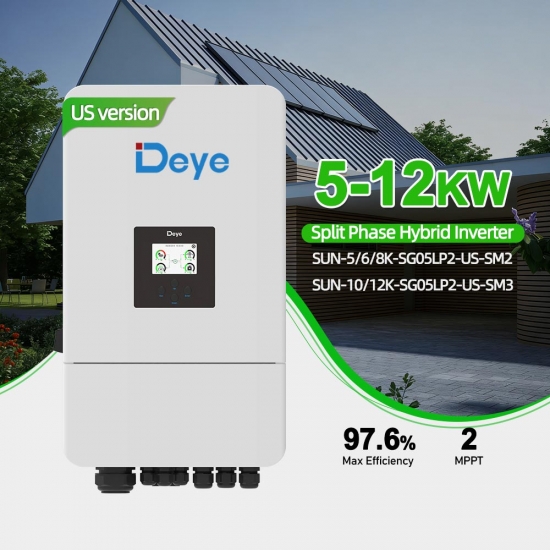

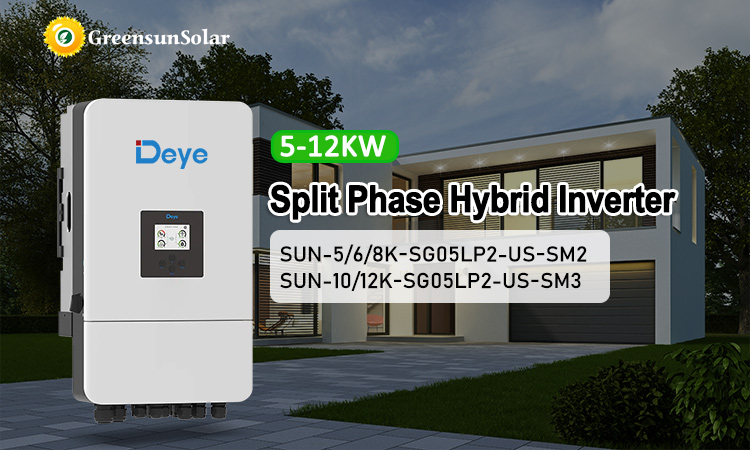

Item NO.:
SUN-12K-SG05 LP2-US-Payment:
T/T, etcProduct Origin:
ChinaShipping Port:
Shanghai, Ningbo, Shenzhen,HongKongLead Time:
5-15 DaysPower Ranger:
5-12KWSize:
386×606.5×240Type:
Hybrid InverterMax Power :
12KWOutput Voltage :
12KWVoltage :
120/240VCertification:
FCC, UL 1741Lead Time:
5-15daysPayment:
T/T, etcWarranty:
5 yearsProduct Introduction
Inverter Parameters
Model
SUN-5K-SG05-LP2-US-SM2
SUN-6K-SG05-LP2-US-SM2
SUN-8K-SG05-LP2-US-SM2
SUN-10K-SG05-LP2-US-SM3
SUN-12K-SG05-LP2-US-SM3
BatteryType
Lead-acid or Lithium-ion
BatteryVoltage Range (V)
40-60
Max. ChargingCurrent (A)
120
135
190
220
220
Max. DischargingCurrent(A)
120
135
190
220
220
Number of Battery Input
2
Max. PV Input Power (W)
8000
9600
12800
16000
19200
Max. PV Input Voltage (V)
500
Start-up Voltage (V)
125
MPPT VoltageRange (V)
150-425
Rated PV Input Voltage (V)
370
Max. OperatingPV Input Current(A)
18+18
32+32
32+32+32
Max. Input Short-Circuit Current (A)
27+27
60+60
60+60+60
No. of MPPTrackers/
No. of Strings MPP Tracker
2/1+1
2/2+2
3/2+2+2
Max.Continuous ACPassthrough (grid to load)(A)
100
Peak Power (off-grid) (W)
2 times of rated power, 10s
Power Factor AdjustmentRange
0.8 leading to 0.8lagging
Rated Input/OutputVoltage/Range (V)
120/240; 208 0.88Un＜U＜1.1Un
Grid Connection Form
2L+N+PE
TotalCurrentHarmonic Distortion THDi
<3% (of nominal power)
Max. Efficiency
97.6%
MPPT Efficiency
>99%
OperatingTemperatureRange (℃)
-40 to +60℃, >45℃ Derating
Ingress Protection(IP) Rating
TYPE 3R
Type Of Cooling
Intelligent air cooling
Cabinet Size (WxHxD mm)
386×606.5×240（Excluding connectors and brackets）
Weight (kg)
29.2
Safety /EMC Standard
FCC, UL 1741

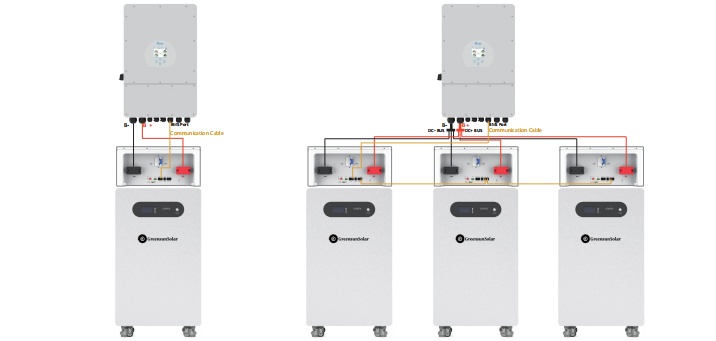

Basic function
Official authorized qualification

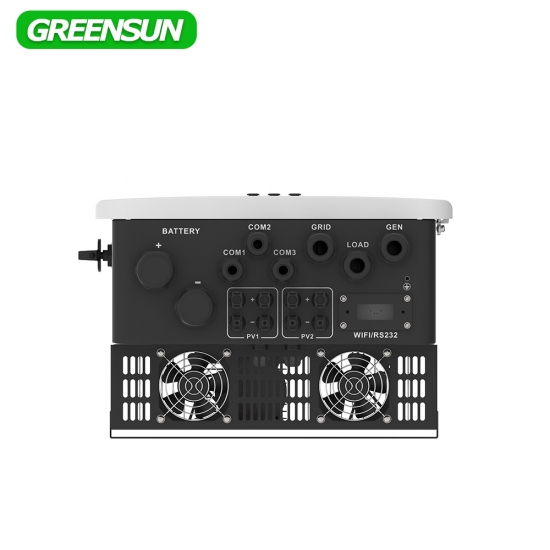

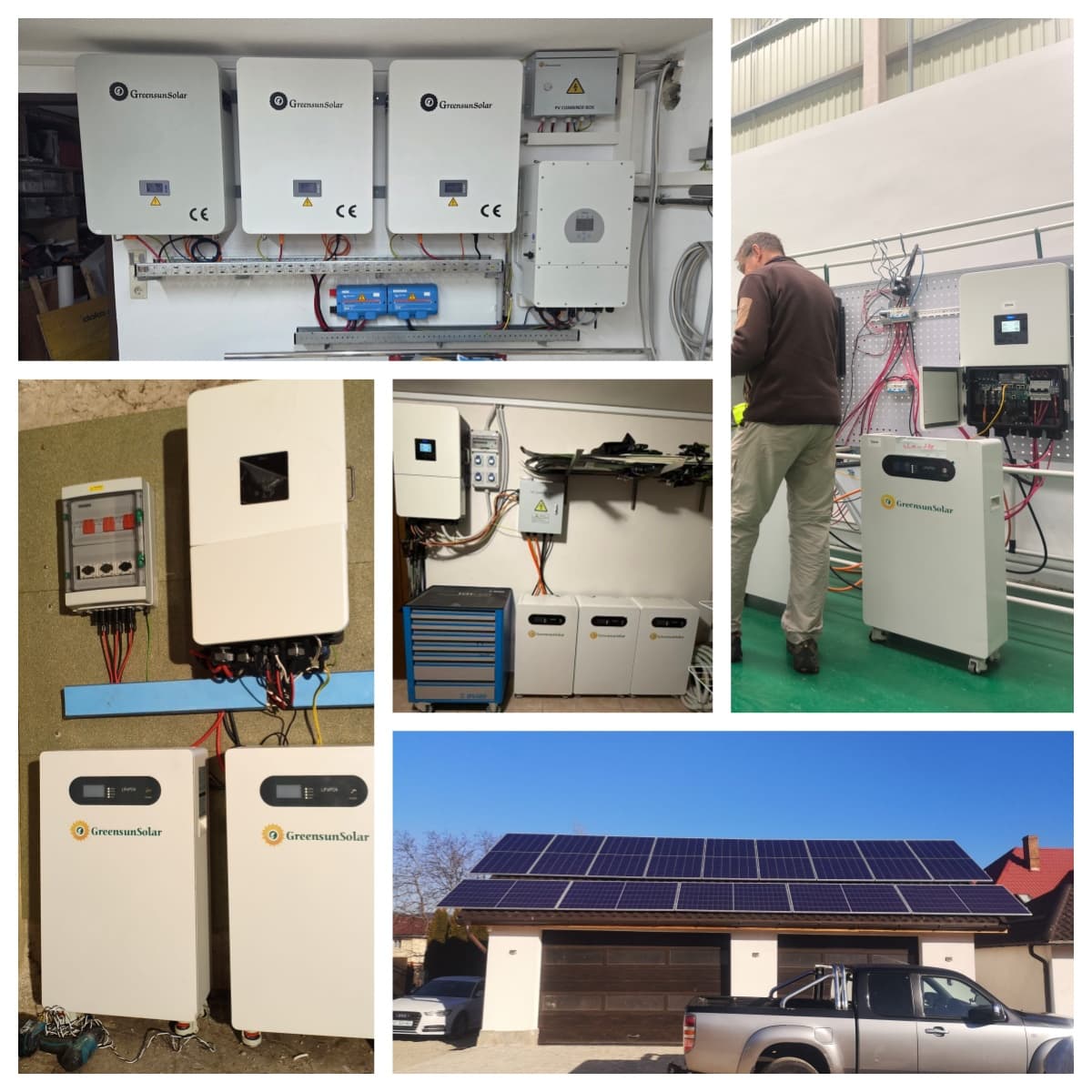

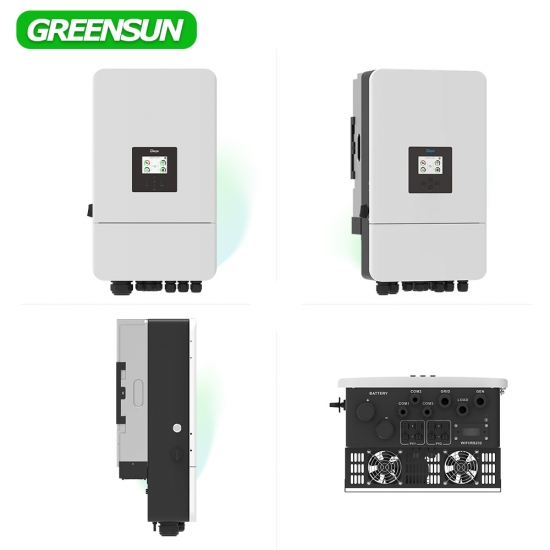

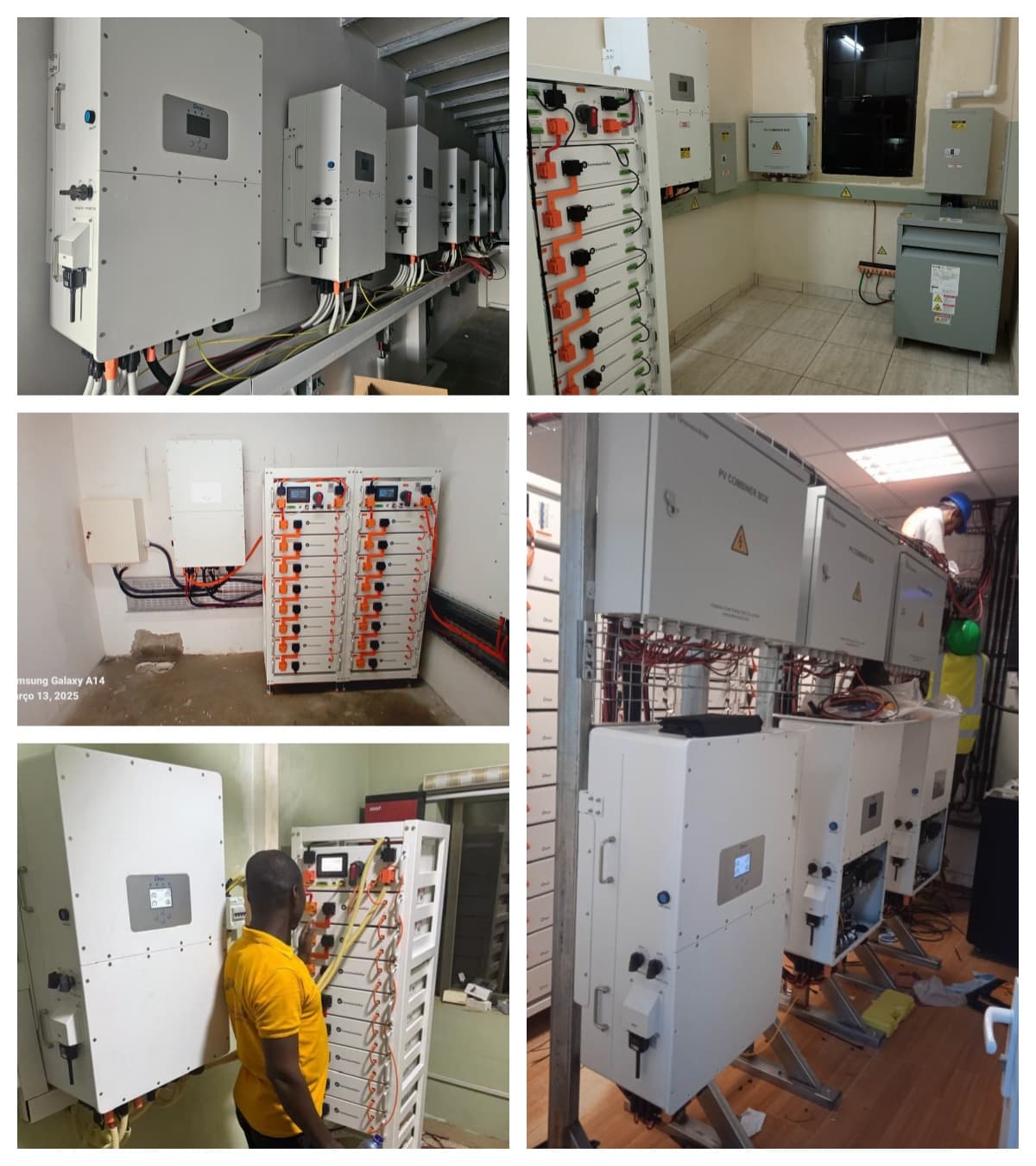

Products Display
