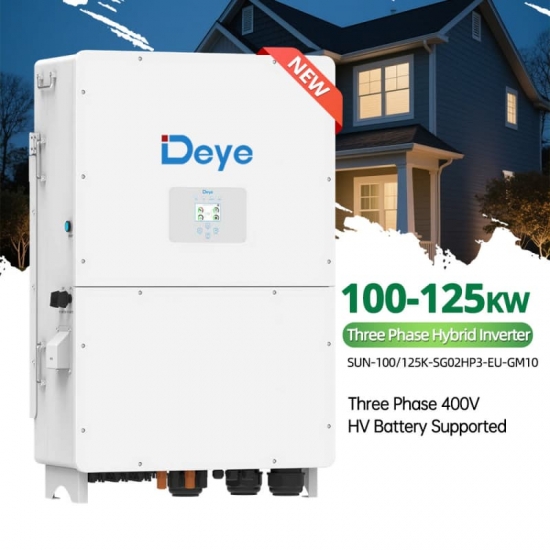

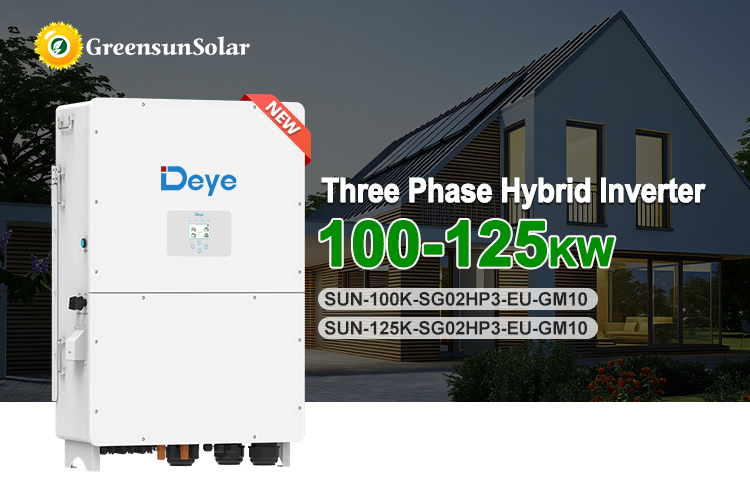

Deye NEW Three phase solar hybrid inverter 100KW 125KW

1.100% unbalanced output
2.AC couple to retrofit existing solar system
3.Max. 10 pcs parallel for on-grid and off-grid
4.operation; Support multiple batteries parallel
  • Item NO.:

    SUN-100K-SG02HP3-EU-
  • Payment:

    T/T, etc
  • Product Origin:

    China
  • Shipping Port:

    Shanghai, Ningbo, Shenzhen,HongKong
  • Lead Time:

    5-15 Days
  • Power Ranger:

    100KW-125KW
  • Size:

    734×1091×344
  • Max Power :

    110000/135000
  • Output Voltage :

    220/380V, 230/400V
Product Details

Product Introduction


single phase Deye inverter


Inverter Parameters

Model
SUN-100K-SG02HP3-EU-GM10
SUN-125K-SG02HP3-EU-GM10
Battery Type
Lithium-ion
Battery Voltage Range (V)
160-1000
Max. Charging Current (A)
100+100
Charging Strategy for Li-ion Battery
Self-adaption to BMS
Number of Battery Input
2
Max. PV Input Power (W)
160000
200000
Max. PV Input Voltage (V)
1000
Start-up Voltage (V)
180
MPPT Voltage Range (V)
150-850
Rated PV Input Voltage (V)
650
Max. Input Short-Circuit Current (A)
63+63+63+63+63+63+63+63+63+63
No. of MPP Trackers/No. of Strings MPP Tracker
10/2+2+2+2+2+2+2+2+2+2
Grid Connection Form
3L+N+PE
Max. AC Input/Output Apparent Power (VA)
110000
135000
Max. AC Input/Output Current (A)
166.7/159.5
204.6/195.7
Max. Continuous AC Passthrough (grid to load) (A)
250
Ingress Protection(IP) Rating
IP 65
Cabinet Size (WxHxD mm)
734×1091×344 (Excluding Connectors and Brackets)
Warranty
5 Years/10 Years
the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
Grid Regulation
IEC 61727,IEC 62116,CEI 0-21,EN 50549,NRS 097,RD 140,UNE 217002,
OVE-Richtlinie R25,G99,VDE-AR-N 4105
Safety / EMC Standard
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

Basic Mode

Deye three phase inverter

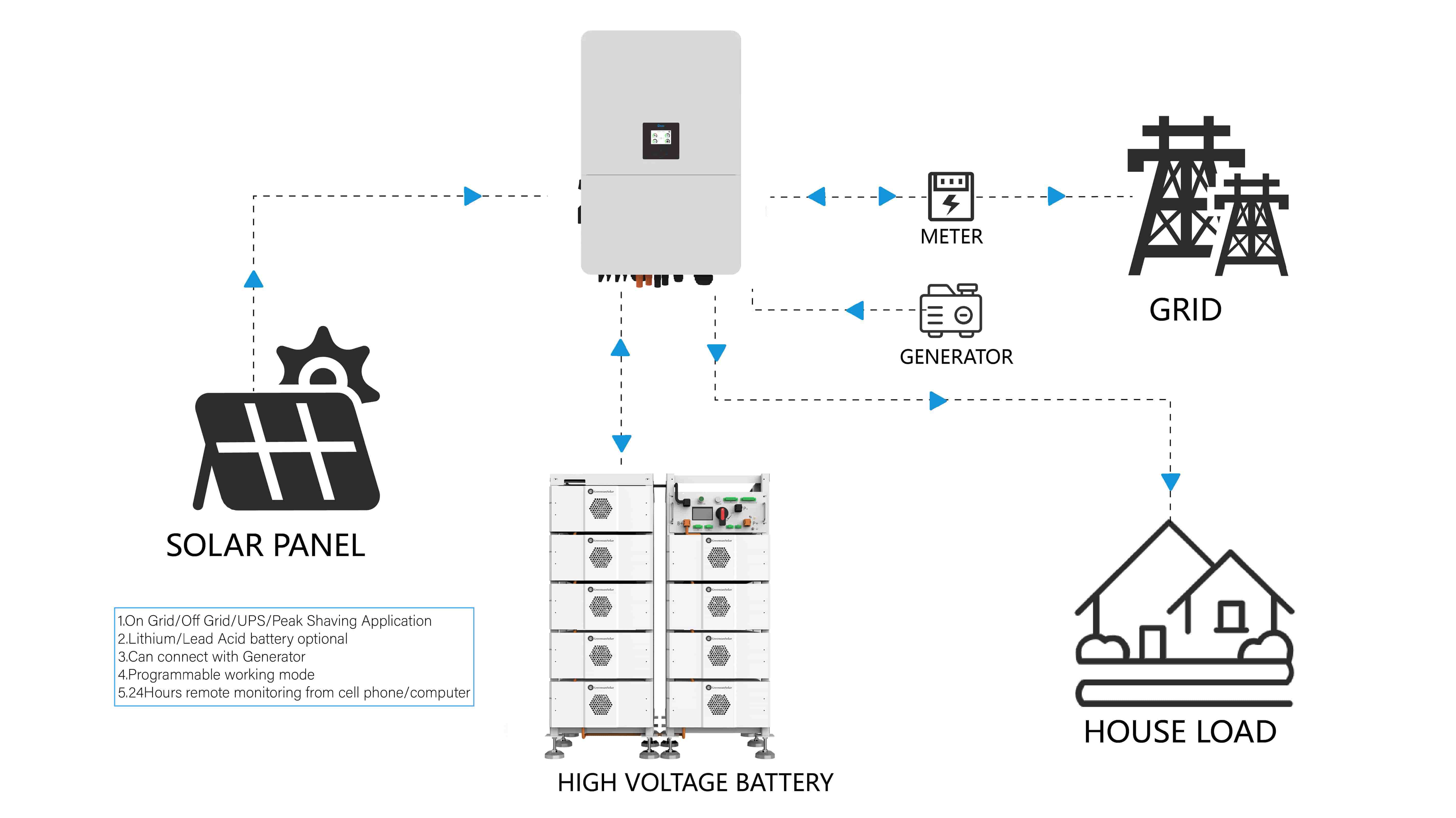

solar hybrid inverter functions


Official authorized qualification

Deye Officially authorized distributor


Products Display

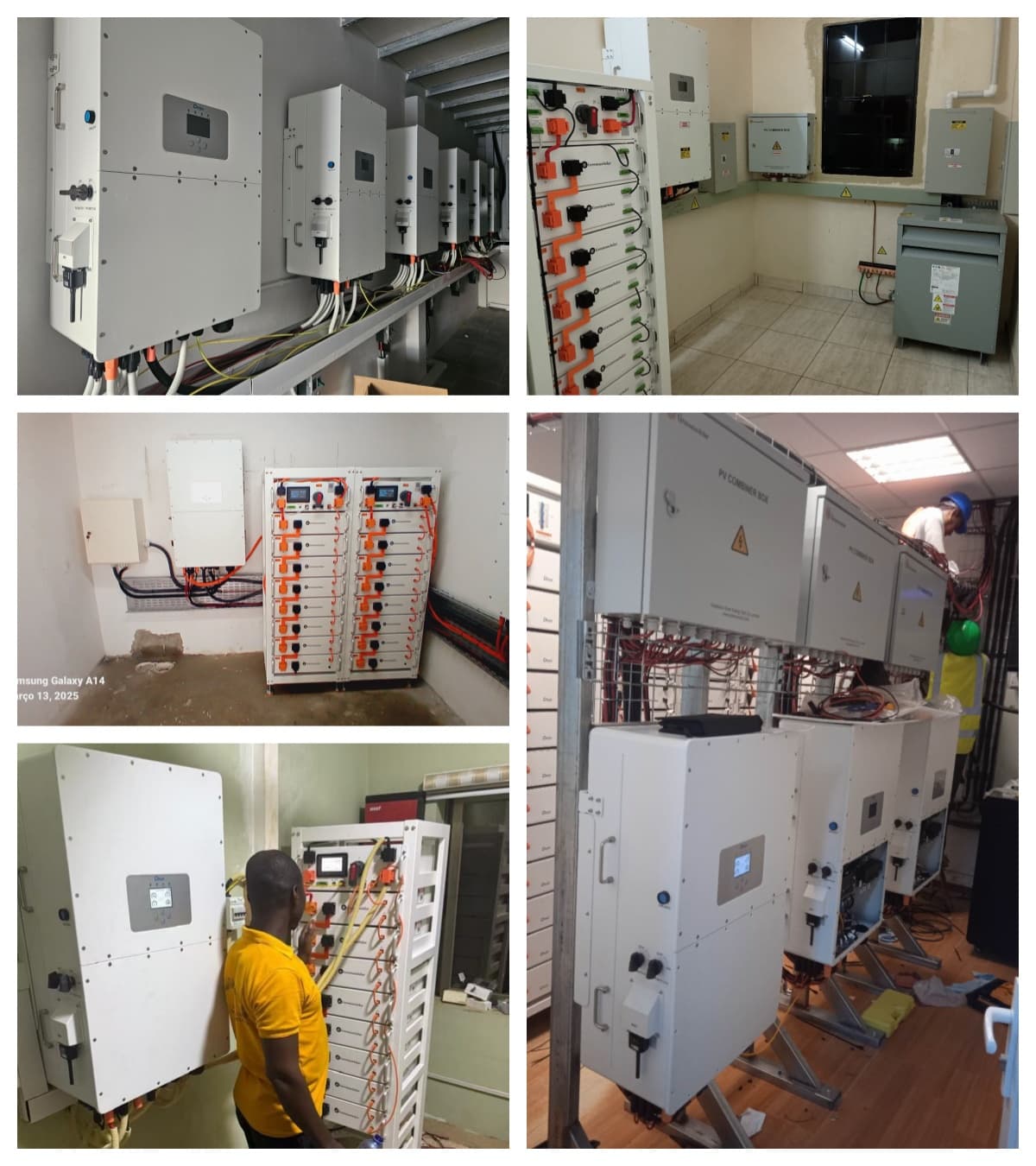

Deye Hybrid inverter system

Why Choose Greensun


1.We are a real factory and have strict requirements on the quality of products.


2.We provide OEM services for many leading companies around the world. we also have long-term cooperation with Solis, Deye,Growatt, Must,SMA and other tier-one brands.


3.As a factory, we have better control over product costs.


4.Both production and delivery are very fast.


5. Also, we provide stable and long-term after-sales service.
