*100V-1000V wide voltage
*30KWH-1000KWH wide Capacity
*Easy installation with modular and stacked design
*Remote firmware upgrade
*IEC/ CE /CEC/ UN38.3/ UL/ MSDS Certificates
*Compatible with all brands Hybrid Inverters

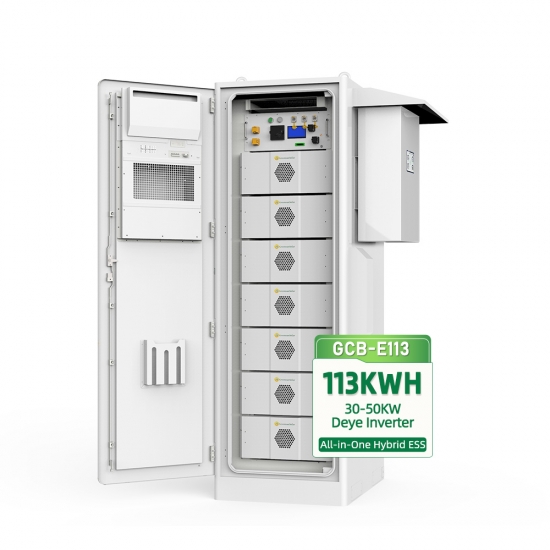

314Ah Greensun 113KWH Lithium Ion Battery Cabinet
|
Model
|
51.2V 314Ah Model
|
Cell Chemistry
|
LiFePO4
|
Module Energy (kWh)
|
16.076
|
Module Nominal Voltage (V)
|
51.2
|
Module Capacity (Ah)
|
314
|
|
Battery Module Qty In Series
|
7
|
System Nominal Voltage ( V )
|
358.4
|
System Energy (kWh)
|
112.53
|
Charge/Discharge
|
157A
|
Thermal Management
|
Battery module: Smart fan cooling; Cabinet: Air conditioner cooling
|
LCD Display
|
SOC/ Voltage/Tem/Time/Fault Code
|
Dimension (W*D*H, mm)
|
759*970*2375mm
|
Weight Approximate (kg)
|
1100kg
|
|
Please contact us for more product information.
|

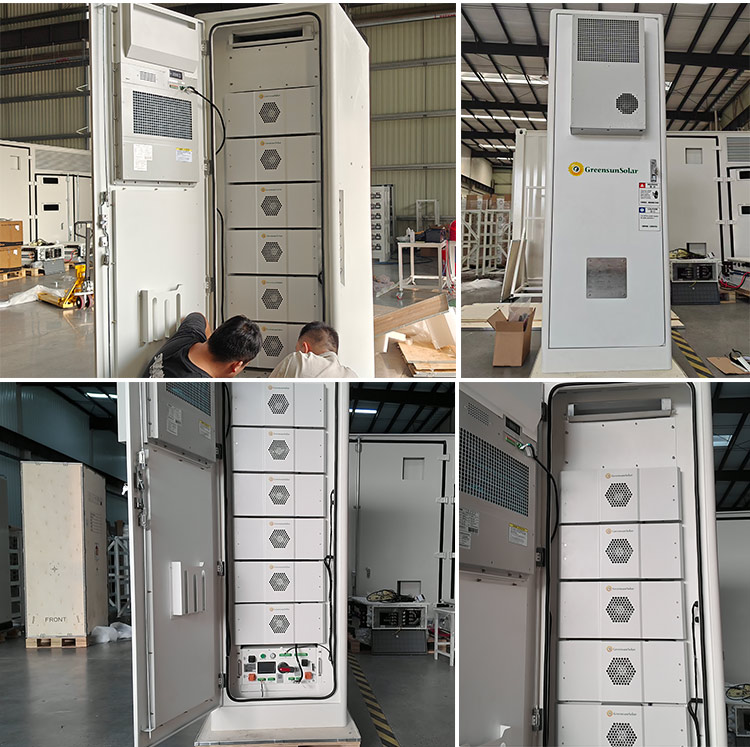

Greensun Battery Production & Package

Greensun Lithium Ion Battery Projects for Reference


All lithium batteries have BMS inside.
Our High Voltage Rack Stack Lithium
Battery Modular can connect in parallel to reach 100KWH to 1MWH, ,,etc. Compared with ordinary sealed lead-acid batteries, our LiFePO4
batteries have more advantages.
1. With the same capacity, the weight is lighter
2. Longer life, generally more than 20 years
3. Faster charging speed and lower self-discharge rate.
4. Built-in BMS, higher security.
Our lithium battery cells come from first-line manufacturers, including CATL, BYD, EVE and other brands.
All batteries are of A+ quality to ensure that the product quality can meet the requirements of customers.
At the same time, our lithium batteries comply with CE, IEC, ISO, UL,
MSDS, UN38.3 and other product certifications to meet the local sales
and use requirements of customers in multiple markets.
At present, our lithium battery products have been exported to more than
100 countries and regions, and we provide quality assurance and
after-sales service for all products.
According to the product status feedback from customers, remote upgrade
control or free replacement of BMS motherboard accessories.
If you have any demand for lithium battery products, please contact us in time.
