Battery datasheet
|
Battery Module Model
|
GLR-200
|
|
Cell Chemistry
|
LiFePO4
|
|
Module Energy (kWh)
|
10.24
|
|
Module Nominal Voltage (V)
|
51.2
|
|
Module Capacity (Ah)
|
200
|
|
Battery Module Qty In Parallel ( Optional )
|
1
|
2
|
3
|
10
|
11
|
12
|
|
System Capacity (Ah)
|
200
|
400
|
600
|
2000
|
2200
|
2400
|
|
System Energy (kWh)
|
10.24
|
20.48
|
30.72
|
102.40
|
112.64
|
122.88
|
|
Charge/Discharge
Current(A)
|
100A
|
200A
|
300A
|
1000A
|
1100A
|
1200A
|
|
Dimension (W*D*H,mm)
|
478*675.8*278
|
478*675.8*556
|
478*675.8*834
|
1000*675.8*1390
|
1000*675.8*1668
|
1000*675.8*1668
|
|
Battery Pack N.W.
|
95.8kg
|
191.6kg
|
287.4kg
|
958kg
|
1053.8kg
|
1149.6kg
|
|
Communication Port
|
CAN/RS232/RS485
|
|
IP Rating of Enclosure
|
IP20
|
|
Cycle Life
|
≥6000 90%DOD
|
|
Warranty Period
|
10Years
|

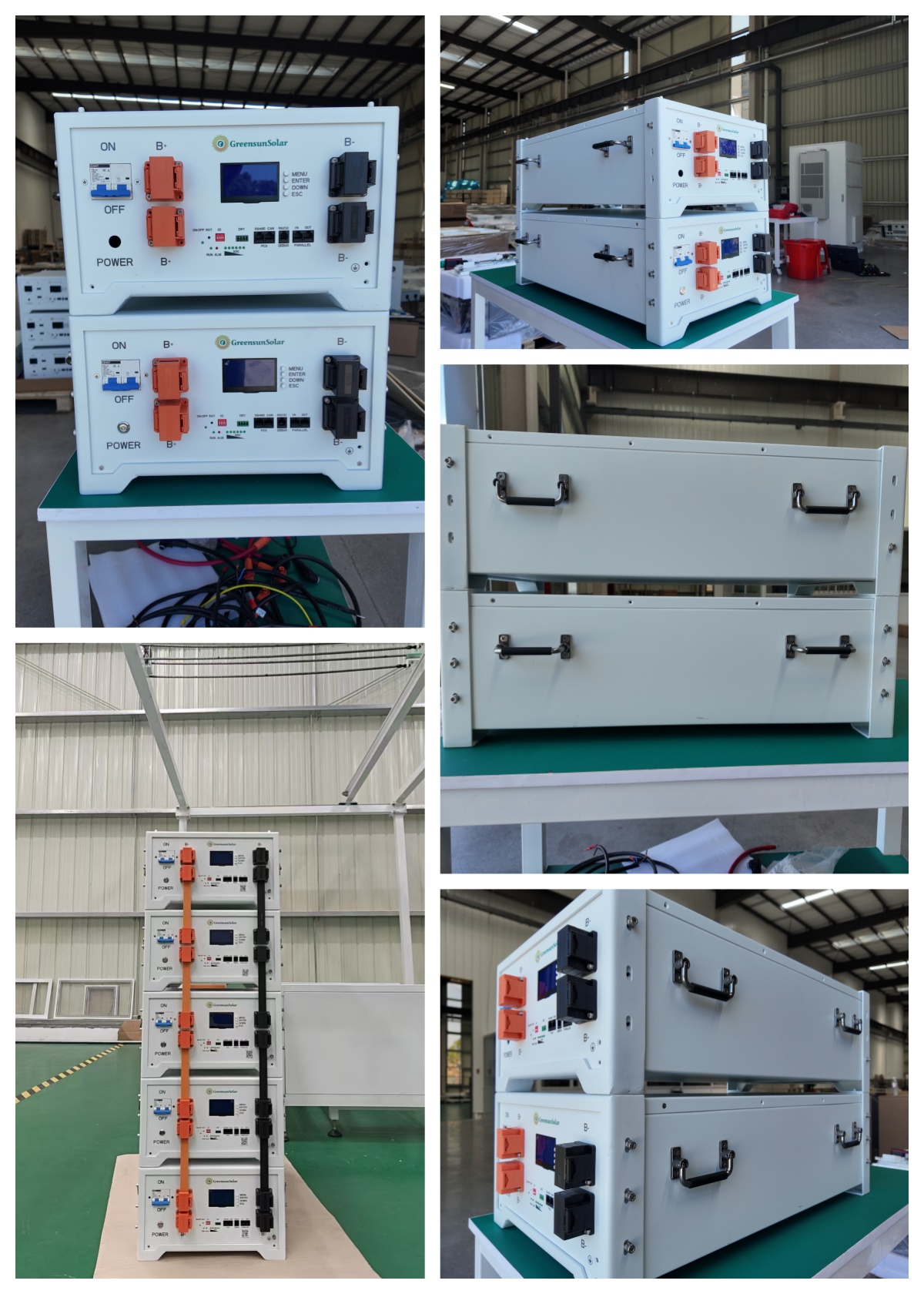

Products Display

Why Choose Greensun Lithium Battery
In the photovoltaic energy storage sector,
lithium batteries offer significant advantages over traditional lead-acid batteries.
It offer increased safety, compact size, light weight, and fast charging.
It also offer lower self-discharge rates and higher energy density.
And also more user-friendly and have a longer lifespan.
We accept customized requests for this type of lithium battery and can configure and produce it according to your specific requirements.
Currently, our lithium battery products utilize A+ grade quality cells and do not use second-hand cells.
Each lithium battery undergoes multiple tests before shipment, including but not limited to cell voltage, cell current, battery voltage and current, and charge and discharge tests.
This ensures that our products meet the needs of mid-range and high-end customers.
We also offer a 10-year warranty.
Depending on the specific situation, our dedicated team of engineers can resolve customer issues through program upgrades, individual cell replacements, BMS replacements, or even complete battery replacements.
Our lithium-ion battery products have been exported to numerous countries, including but not limited to the United States, Canada, Puerto Rico, Germany, Poland, Belgium, the Philippines, Saudi Arabia, South Africa, Nigeria, and more.
Our products comply with major market certifications such as CE, ISO, MSDS, and UN38.3.
If you have any needs,
You can write to us below⬇️⬇️⬇️,and contact us directly.
We will tailor a specific Solar energy storage product to meet your specific needs.
