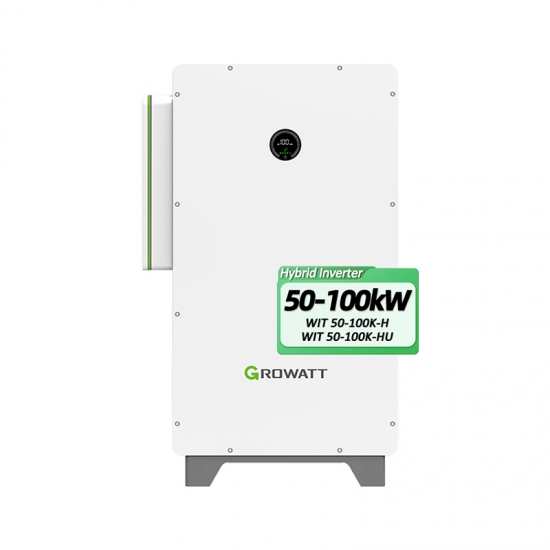

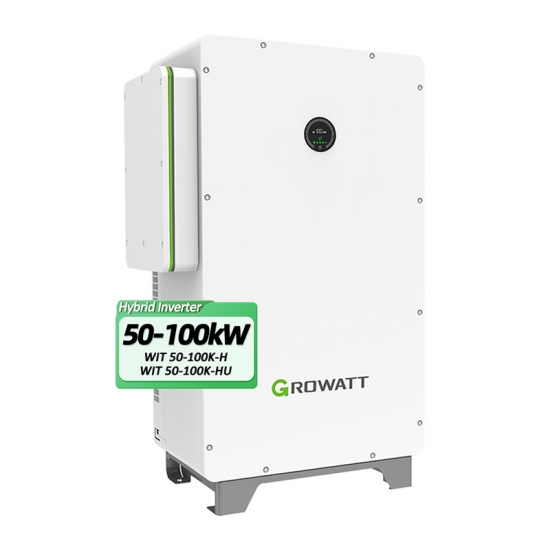

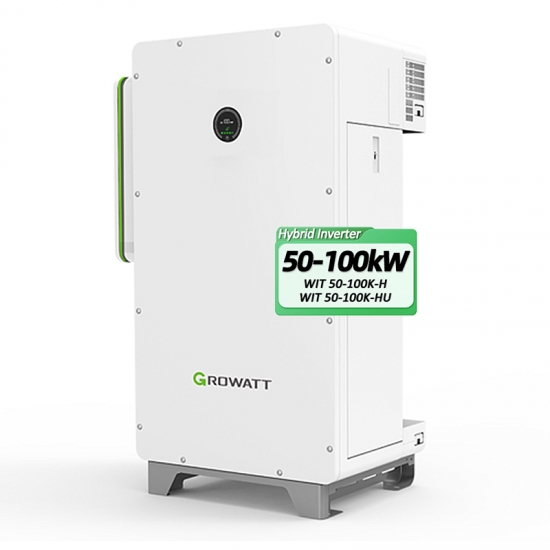

Growatt Three Phase EU Version Solar Hybrid Inverter WIT 50-100kW
(WIT 50-100K-H, WIT 50-100K-HU)

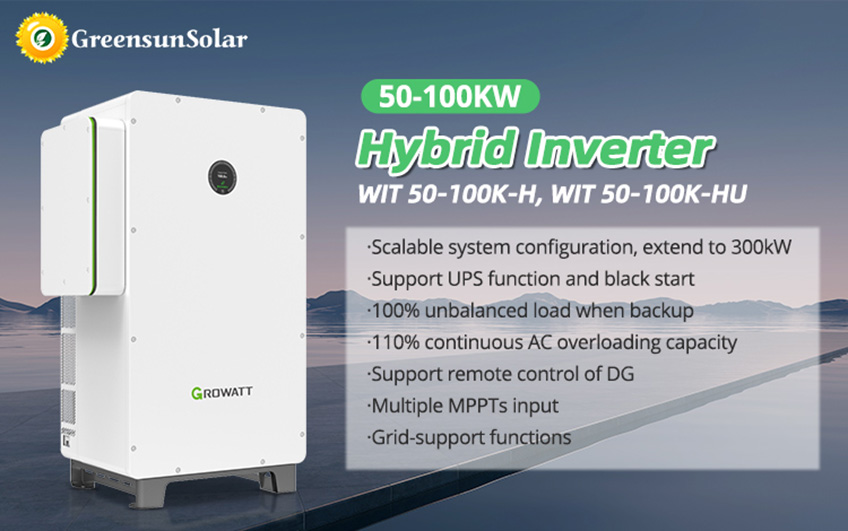

Features:
·Scalable system configuration, extend to 300kW
·Support UPS function and black start
·100% unbalanced load when backup
·110% continuous AC overloading capacity
·Support remote control of DG
·Multiple MPPTs input
·Grid-support functions
Specifications of Growatt Three Phase 50KW 100KW Hybrid Inverter
MODEL
|
WIT 50K-H WIT 50K-HU
|
WIT 100K-H WIT 100K-HU
|
Battery(DC)
|
|
|
Continuous charging and discharging power
|
56.7KW
|
113.5KW
|
Battery Type
|
LFP Battery
|
Battery Voltage Range
|
600-1000VDC (for 3P3W) / 680-1000VDC (for 3P4W) (>850V derating)
|
Recommended Battery Voltage
|
|
MAX Charging Current
|
83.3A
|
167A
|
MAX Discharger Current
|
83.3A
|
167A
|
BMS communication
|
RS485/CAN
|
|
|
|
PV Input Data
|
|
|
MAX PV Input Power
|
96000W
|
128000W
|
MAX PV Input Voltage
|
1000VDC
|
MPPT Voltage Range
|
180-800VDC
|
MPPT Nominal Voltage
|
550Vdc
|
Max. Operating PV Input Current
|
36A+36A+36A+36A+36A+36A+32A
|
36A+36A+36A+36A+36A+36A+32A+32A+32A+32A
|
NO. of MPPT Trackers
|
7
|
10
|
No. of PV Strings per MPPT
|
2
|
2
|
|
|
|
AC Output Data
|
|
|
Rated AC Power
|
50KW
|
100KW
|
MAX AC Apparent Power
|
55KVA
|
110KVA
|
Max. Output Current
|
83.3A
|
166.7A
|
Output Frequency and Voltage
|
50/60Hz; 380/400/415VAC, -15%~+10%
|
50/60Hz; 380/400/415VAC, -15%~+10%
|
Current Harmonic Distortion
|
THD<3%
|
THD<3%
|
|
|
|
AC Input Data
|
|
|
Rated AC Power
|
500/100KW
|
100KW/200KW
|
MAX AC Apparent Power
|
55KVA/100KVA
|
110KVA/200KVA
|
Nominal AC Voltage/Range
|
380/400/415VAC, -15%~+10%
|
380/400/415VAC, -15%~+10%
|
Nominal AC Frenquency/Range
|
50/60HZ; 45-55HZ/55-65HZ
|
50/60HZ; 45-55HZ/55-65HZ
|
Max Input Current
|
83.3A/151.5A
|
166.7A/303A
|
|
|
|
Efficiency
|
|
|
MAX Efficiency
|
98.2%
|
98.2%
|
|
|
|
Protection
|
|
|
AC/DC Surge Protection
|
TYPE II
|
TYPE II
|
PID Protection
|
YES
|
YES
|
PV String Input Reverse Polarity Protection
|
YES
|
YES
|
Battery Reverse Protection
|
YES
|
YES
|
AC islanding Protection
|
YES
|
YES
|
AC short circuit Protection
|
YES
|
YES
|
Grid Monitoring
|
YES
|
YES
|
Ground Fault Monitoring
|
YES
|
YES
|
|
|
|
Dimention
|
820*1350*510mm
|
820*1350*510mm
|
Weight
|
153kg
|
160kg
|
IP Degree
|
IP66
|
IP66
|
Certificates
|
EN 62920-2017, IEC/EN 62477-1, IEC/EN 62109-1, IEC/EN 62109-2, IEC 62116, IEC 61727, G99:2020, EN50549-1, VDE 4105, NRS 097-2-1
|
Warranty 5/10years
|
YES/OPT
|
We provide comprehensive after-sales and technical support.

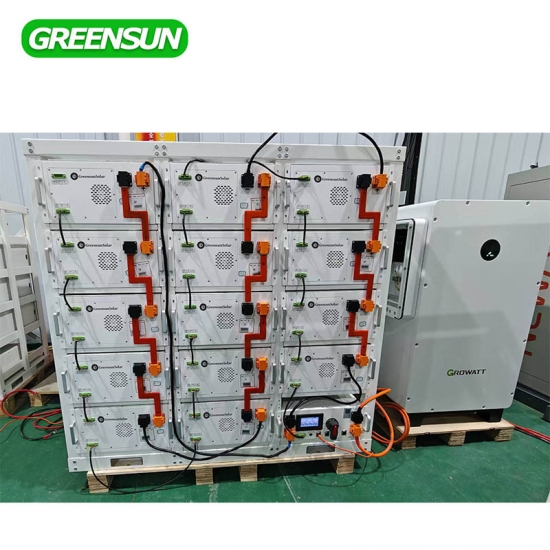

And our HV lifepo4 lithium battery had been tested with Growatt WIT model inverters. They can work well together.
For long-term and powerful customers, we will provide technical installation guidance and product training.
We also offer Complete solar systems solution, which include solar panel, solar inverter, storage battery,,,,etc.
For more information, please feel free to contact our team
