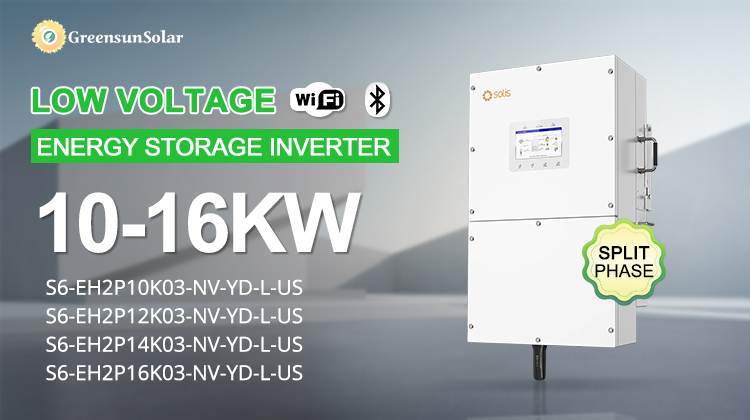

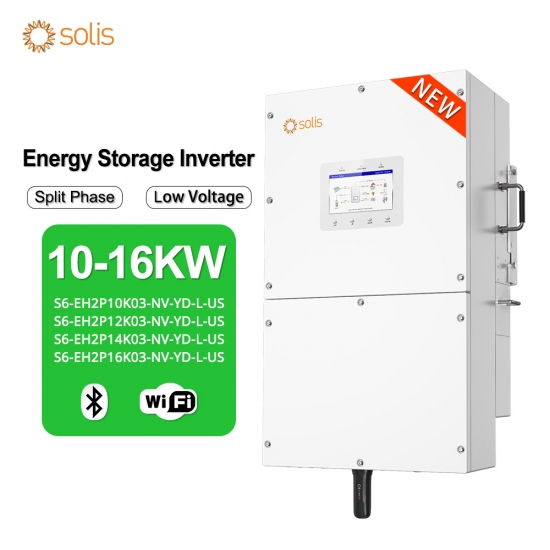

S6-EH2P(9.6-16)K03-SV-YD-L-US Split Phase 120V 220V 240V 10KW 12KW 14KW 16KW Hybrid Inverter

New Hybrid Solar Inverter Split Phase 10V/240V 60hz US Standard

S6-EH2P9.6K03-SV-YD-L-US
S6-EH2P11.4K03-SV-YD-L-US
S6-EH2P12K03-SV-YD-L-US
S6-EH2P14K03-SV-YD-L-US
S6-EH2P16K03-SV-YD-L-US


  • Item NO.:

    S6-EH2P(9.6-16)K03-S
  • Product Origin:

    China
  • Shipping Port:

    Ningbo, Shanghai, Shenzhen
  • Lead Time:

    10-20days
  • Type:

    hybrid inverter Split Phase 120V 240V
  • Output Voltage :

    120/240v 60hz
  • Item No:

    Split Phase
  • Inverter Power:

    10-16KW
  • Certification:

    CE, TUV, IEC, UL1741, VDE,,,,etc
  • Lead Time:

    In Stock
  • Payment:

    T/T; West Union; West Union; Paypal and so on
  • Warranty:

    10 years
Product Details

S6-EH2P(9.6-16)K03-SV-YD-L-US Split Phase 120V 220V 240V 10KW 12KW 14KW 16KW Hybrid Inverter

split phase hybrid solar inverter 16kw

12kw split phase inverter hybrid

Specifications of  hybrid solar inverter Split Phase 10KW 12KW 14KW 16KW

Model
9.6KW 12KW 14KW 16KW
Battery Type
Lead-acid or Lithium-ion
Battery Voltage
40-60V
Max Charge
200A
250A
290A
290A
Max Discharge
200A
250A
290A
290A
NO of Battery Input
1
Input DC (PV Side)



Max PV Input Voltage
550V
Start-up Voltage
100V

Max Operating PV Input Current per MPPT

40A
Max Input Short-Circuit Current per MPPT
50A
No of MPP Trackers
3
No of Strings MPP Tracker
2
Output AC (Grid Side)



AC Input/Outpur Power
9.6KW
12KW
14KW
16KW
Max AC Input/Output Power
9600W
1200W
14000W
16000W
AC Input/Outpur Current
40A
50A
58.3A
66.7A
Max AC Input/Outpur Current
40A
50A
58.3A
66.7A
Max Continuous AC Passthrough
70A
Peak Power (Off-Grid)
3 times of rated power, 1s
Input/Output Voltage
 L1/L2/N(PE), 120 V / 240 V (split phase)
Rated output voltage (L1-L2)
240 V
Communication
RS485/RS232/CAN
Protection Rating
IP65
Weight
64.3 KG
Cabinet Size (W*H*D mm)
500*955*297
Warranty
5 Years/10 Years
Safety Certifications UL 1741 PVRSS, UL 1699B, UL 1998 (US), UL 3741

As a long-term partner of DEYE inverter, we GREENSUN have become the official authorized dealer of Solis Inverter.

We can provide all the products listed on the Solis official website, including energy storage inverters, energy storage batteries, etc.
Also including Solis' latest 10KW 12KW 14KW 16KW energy storage inverter (S6-EH2P(9.6-16)K03-SV-YD-L-US).
All inverters sold by us enjoy direct after-sales service from SOLIS, whether it is replacing the whole machine or replacing parts.

In addition, our GREENSUN's own lithium batteries, ordinary 48V 51.2V low-voltage lithium batteries and HV high-voltage lithium batteries are all in the SOLIS official list and support communication with SOLIS inverters.

At the same time, SOLIS provides communication services and after-sales for lithium battery brands certified by DEYE. DEYE does not provide any after-sales support for lithium batteries that are not certified by SOLIS.

Compared with the old version of SOLIS energy storage inverter, the new 10KW 12KW 14KW 16KW hybrid inverter can withstand larger solar panel current and is smaller in size.


One stop solution for solar power system.
