Three Phase 380VAC/400VAC/415VAC Energy Storage Inverter 80KW 100KW 125KW
Support parallel up to 6 units
Very stuitable for Commercial and Industrial application
Product Origin:
ChinaShipping Port:
Ningbo, Shanghai, ShenzhenType:
Hybrid Solar InverterOutput Voltage :
380/400/415V,-15%~+10%Item No:
3PhaseCertification:
CE, TUV, IEC, VDE,,,,etcLead Time:
7-15daysWarranty:
5 years/10 years(optional)
Product Introduction

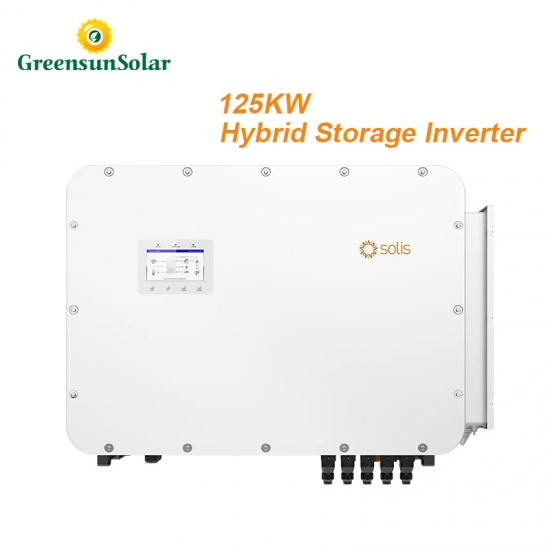

S6-EH3P(75-125)K10-NV-YD-H Series, three phase hybrid storage inverter with high battery voltage is designed and manufactured for commercial application.
This model inverter had passed many certifications.
·Support max 10 pcs in parallel mode, >6 pcs recommend Solis power distribution cabinet
·Seamless on grid/off grid switching time <10ms
·Supports 2 independent battery connections for flexible configuration
·10Mppts
·Supports max 21A PV input current, perfect match for high power PV modules
·Usable PV power up to 200% inverter rated power, to improve the utilization of PV generation
·Supports faster charging with battery current up to 200A
·Compatible with 100-314Ah battery modules
·Powerful backup overload capability – 160% overload

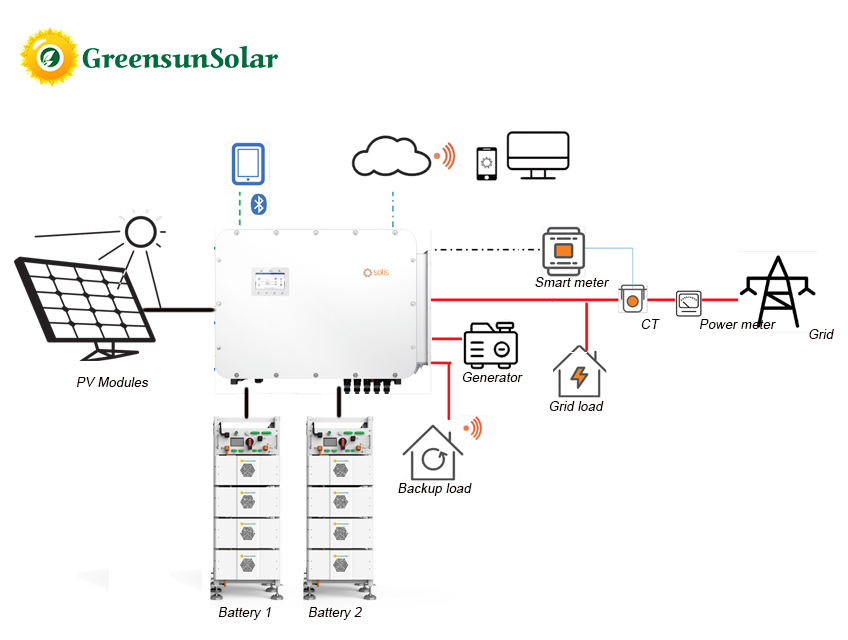

System Diagram

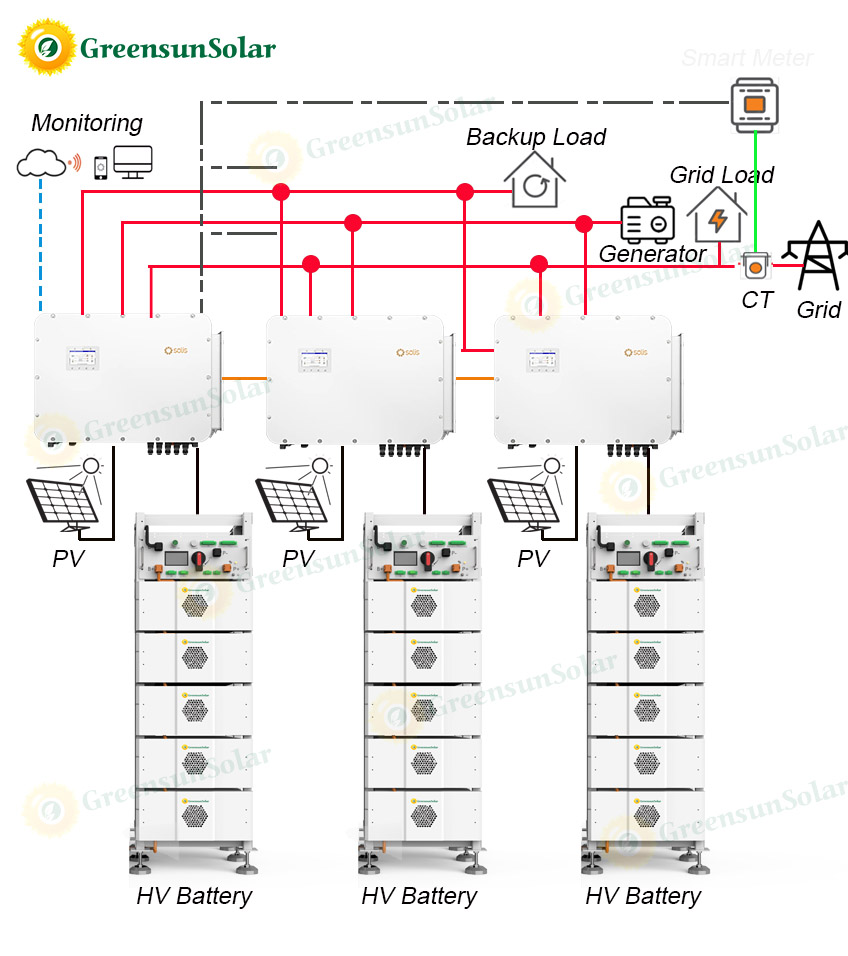

Parallel Diagram
Specifications of Solis Three Phase HV S6-EH3P(75-125)K10-NV-YD-H Series Storage Inverter
| MODEL | 75K | 80K | 100K |
125K |
| Battery(DC) |
|
|
|
|
|
Battery Type |
Li-ion | |||
|
MAX Battery Voltage |
950V | |||
|
Recommended Battery Voltage |
300-950V | |||
| Number of Battery Port | 2 | 2 | 2 | 2 |
| Max charge/discharge current per port | 100A | 100A | 100A | 100A |
| MAX Charging Current | 200A |
200A |
200A | 200A |
| MAX Discharger Current | 100A+100A |
100A+100A |
100A+100A | 100A+100A |
|
BMS communication |
CAN/RS485 |
CAN/RS485 |
CAN/RS485 |
CAN/RS485 |
|
|
|
|
|
|
| PV Input Data(DC) |
|
|
|
|
| Recommended MAX PV Input Power | 150KW | 160KW | 200KW | 240KW |
|
MAX PV Input Voltage |
1000Vdc | |||
|
MPPT Voltage Range |
150-950V | |||
|
Nominal Voltage |
600V | |||
|
Max. Operating PV Input Current |
10*42A | |||
|
Max. short circuit current |
10*60A | |||
| NO. of MPPT Trackers | 10 | 10 | 10 | 10 |
| No. of PV Strings per MPPT | 2 | 2 | 2 | 2 |
|
|
|
|
|
|
| AC Output Data(Grid Side) |
|
|
|
|
| Rated AC Power | 75KW | 80KW | 100KW | 125KW |
|
MAX AC Apparent Power |
75KVA | 80KVA | 100KVA | 125KVA |
|
Rated Output Current |
114A/108.3A | 121.6A/115.5A | 152A/144.3A | 180.4A/189.9A |
|
Output Frequency and Voltage |
50/60Hz; 3/N/PE, 220/380VAC; 230/400VAC |
|||
| Power Factor | >0.99(0.8 Leading~0.8Laging | |||
| THDI | <3% | |||
|
|
|
|
|
|
|
AC Input Data(Grid Side) |
|
|
|
|
| Max Input Current | 250A | 250A | 250A | 250A |
|
MAX Apparent AC Power |
1.2 Times of rated power, 10mins; 1.4 Times of rated power, 100s; 1.6 times of rated, 10s; 2 times of rated, 200ms |
1.2 Times of rated power, 100s; 1.4 Times of rated power, 10s; 1.6 times of rated, 10s; |
||
| Backup switch time | <10 ms |
|
||
| Rated Output Voltage |
3/N/PE, 220/380VAC; 230/400VAC |
|||
| Rated Frequency | 50/60hz |
50/60hz |
50/60hz | 50/60hz |
|
|
|
|
|
|
|
|
|
|
|
|
| Efficiency |
|
|
|
|
|
MAX Efficiency |
97.6% |
97.6% |
97.6% | 97.6% |
| EU efficiency | 97.2% |
97.2% |
97.2% | 97.2% |
|
|
|
|
|
|
| Protection |
|
|
|
|
|
AC/DC Surge Protection |
DC Type II / AC Type II |
DC Type II / AC Type II |
DC Type II / AC Type II |
DC Type II / AC Type II |
| Output Over Current Protection | YES | YES |
YES |
YES |
|
PV String Input Reverse Polarity Protection |
YES | YES |
YES |
YES |
| Integrated DC Switch | YES | YES | YES | YES |
|
Anti islanding Protection |
YES | YES |
YES |
YES |
|
Short circuit Protection |
YES | YES |
YES |
YES |
| Protection class / Over voltage category | I/II |
I/II |
I/II | I/II |
|
|
|
|
|
|
| General Data |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Dimention(W H D) | 1174*814*400mm | |||
| Weight | 170kg | 170kg | 170kg | 170kg |
| IP Degree | IP66 | IP66 | IP66 |
IP66 |
| Cooling |
Intelligent fan-cooling
|
|||
| Grid connection standard |
G99, VDE-AR-N 4105/VDE V 0124, EN 50549-1&2/EN 50549-10, VDE 0126/UTE C 15/VFR:2019, NTS 631/RD 1699/RD 244/ UNE 206006/UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, TOR, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683,
EN 50530, MEA, PEA,PORTARIA Nº 140, DE 21 DE MARÇO DE 2022;
Brazil (75K: ORDINANCE (PORTARIA) NO.140, ORDINANCE NO. 515; 100K/125K: NBR 16149, NBR 16150, IEC 62116) |
|||
| Communication |
CAN, RS485-115200, Ethernet, Optional: Wi-Fi, Cellular, LAN |
|||
